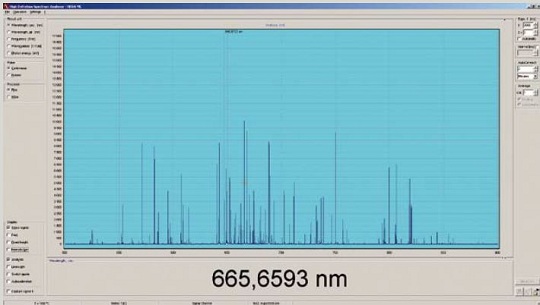

HighFinesse/Angstrom社のHDSAは、ブロードに発振する広帯域光源の複雑なスペクトルを高精度で測定できる、コンパクトで高速な光スペクトラムアナライザです。二次元CCDを使用することにより、広い帯域を一度に高速に測定することが可能です。フィルタなどの光学部品の検査に最適です。
レーザなどのスぺクトルの狭い光源には、中赤外領域用のモデルもご用意している、LSAをご利用下さい。

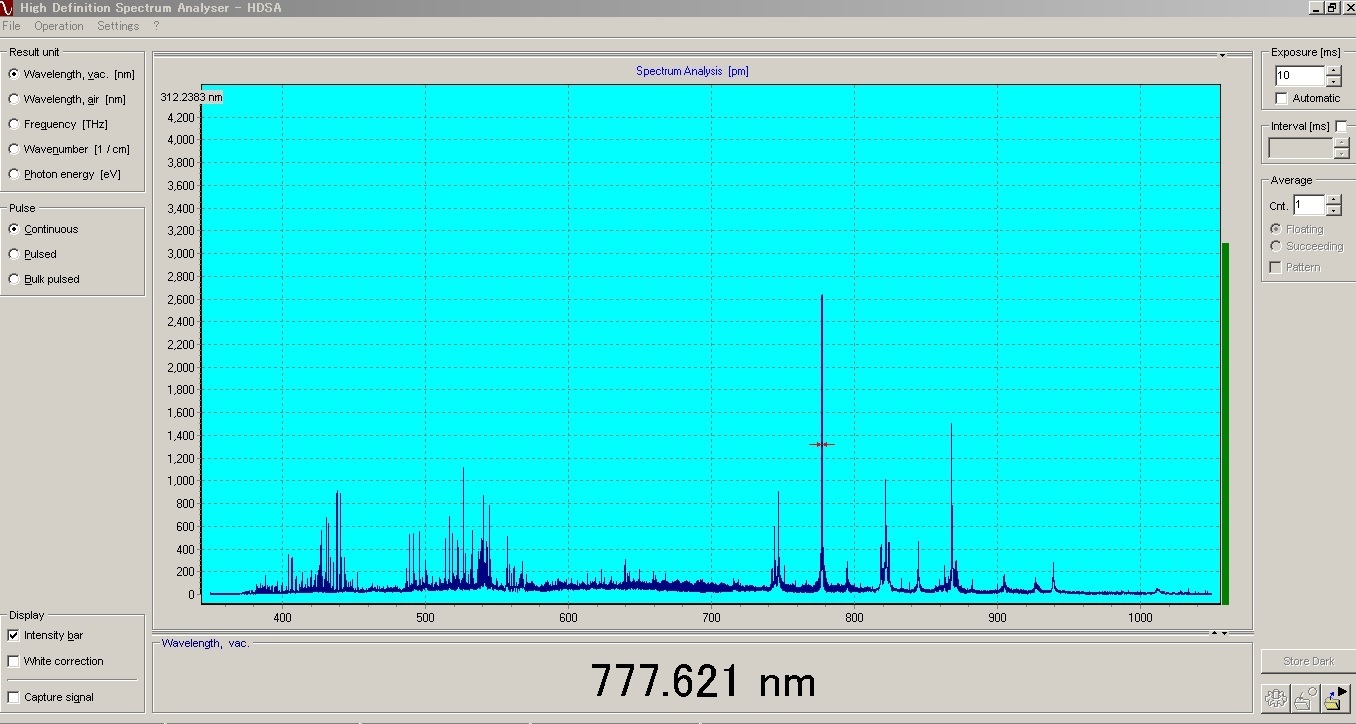

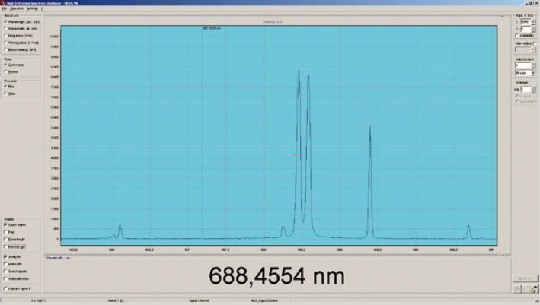

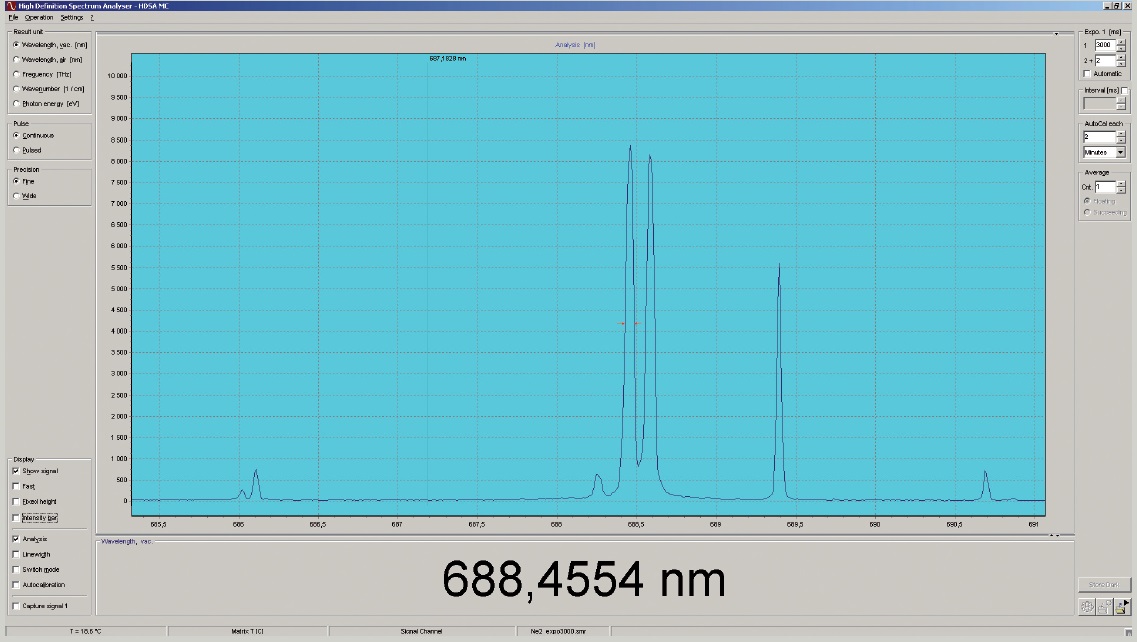

測定画面上で、特定のスペクトルを拡大することが可能です。
HDSAは非常に感度が高く最大入射可能パワーが小さい為 ( 0.01 μW 程度 @ 633 nm 縦シングルレーザ )、出力の全量をHDSAに入射してパワーを測定する事は出来ない場合があります。また、縦軸は相対値となっており、dBm や mW 表示は出来ません。
Model | HDSA |
Measurement Range: | |
Standard(450~1000 nm) | ○ |
Absolute Accuracy *2 | |
Standard(450~1000 nm) | 5 GHz |
Wavelength Deviation Sensivity/Mesurement resolution | |
Standard(400~1000 nm) | 2 GHz |
Resolving power ( λ/ Δλ)*5 | |
Standard(400~1000 nm) | 25000@633nm |
Measurement Speed *7 | Data acquisition, spectrum calculation |
Standard(400~1000 nm) | 7.5, 7.5 Hz |
Required input energy and power *8 | |
Standard(400~1000 nm) | 2 nJ/ nm@ 633 nm |
Calibration | External calibration source needed, ( included in delivery ) |
Dybamic Range | 37 dB |
Recalibration Period | <= 7 days |
Interface | USB3 |
Power Supply | |
standard | Power supply via USB cable |
Weight | ~4.5 kg |
Dimensions | 360 x 210 x 120 mm |
PDF Download | ⇒カタログダウンロード(224KB) |
NOTE:
2) According to 3σ criteria
5) Spectral resolution Δλ = λ / R; R = resolving power. According to Rayleigh criterion.
7) Depending on PC hardware and settings. Without autocalibration usage
8) The cw power interpretation in [μW] compares to an exposure of 1s (generally the energy needs to be divided by the exposure time to obtain the required power)
11) Various modifications available: other spectrul range, resolution, accuracy and mesuremnt speed. Please contact to us for futher details !
12)12) Each device in each mode can measure lasers with a linewidth up to 30 % of the correspondig FSR
